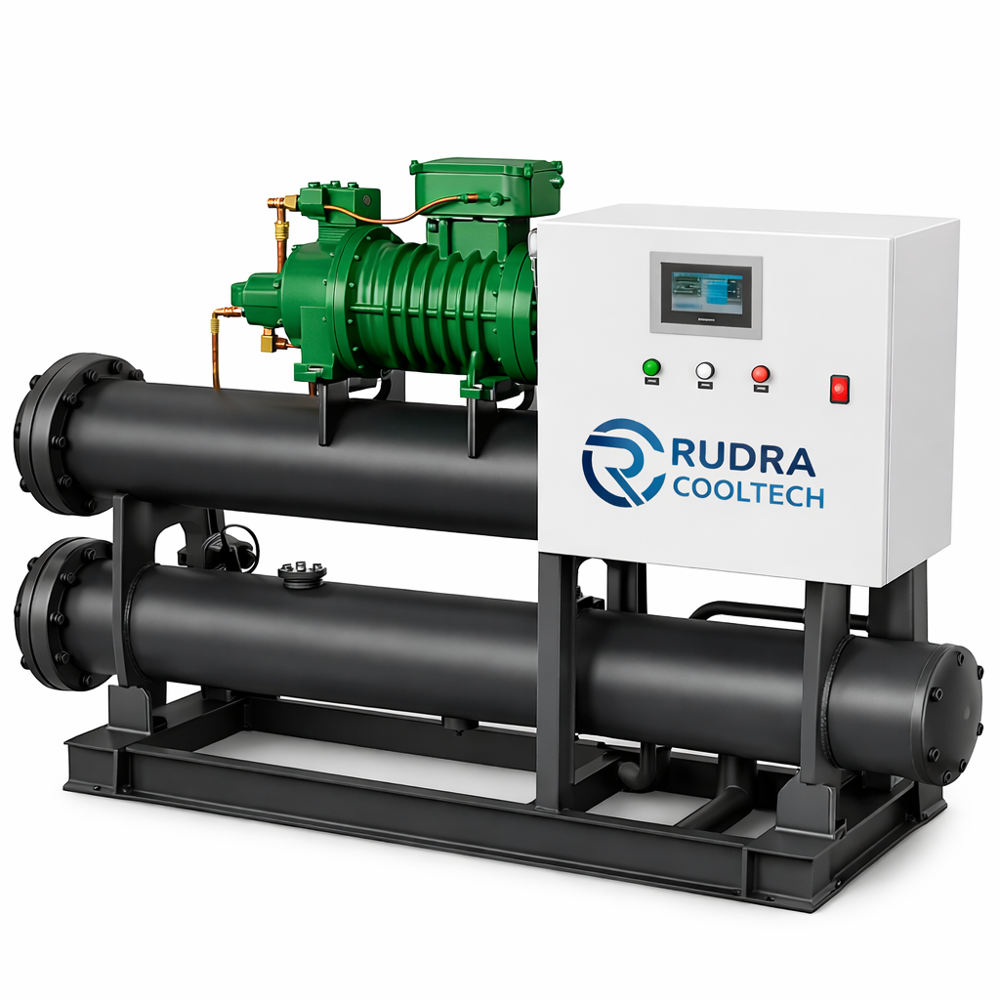

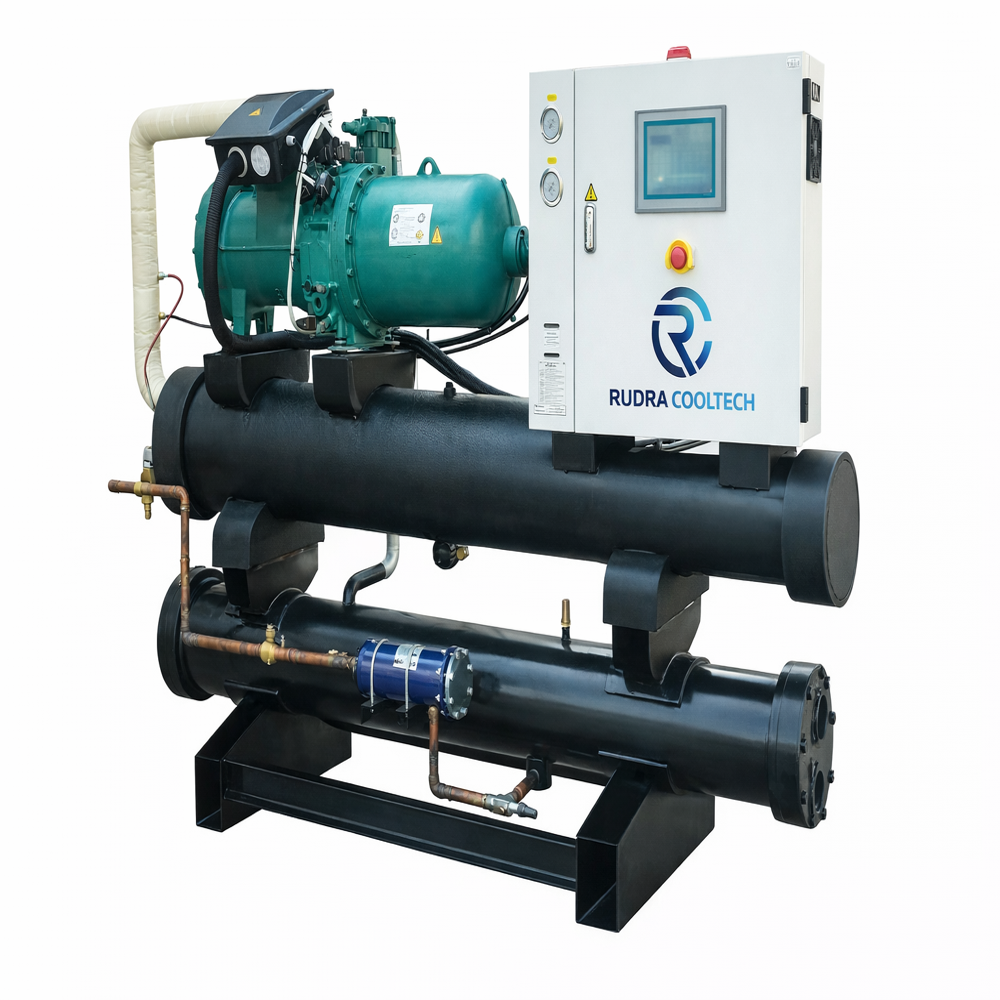

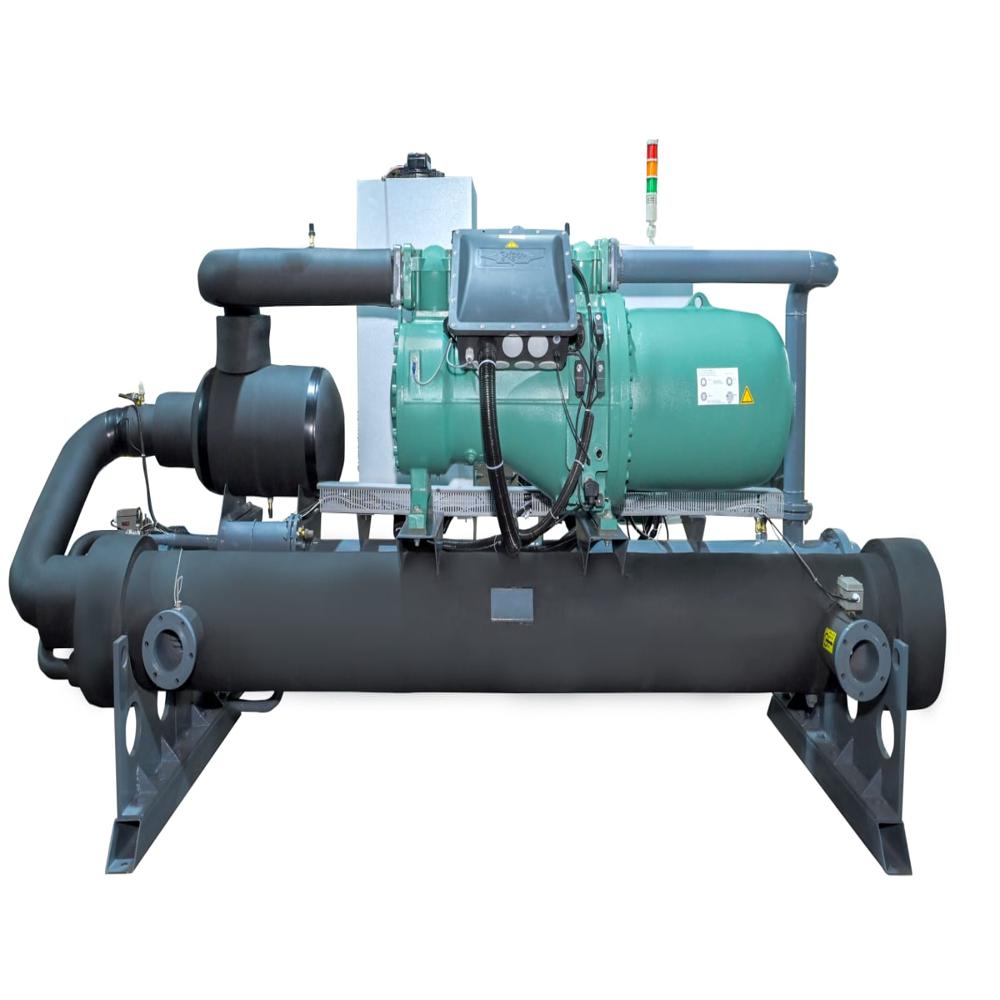

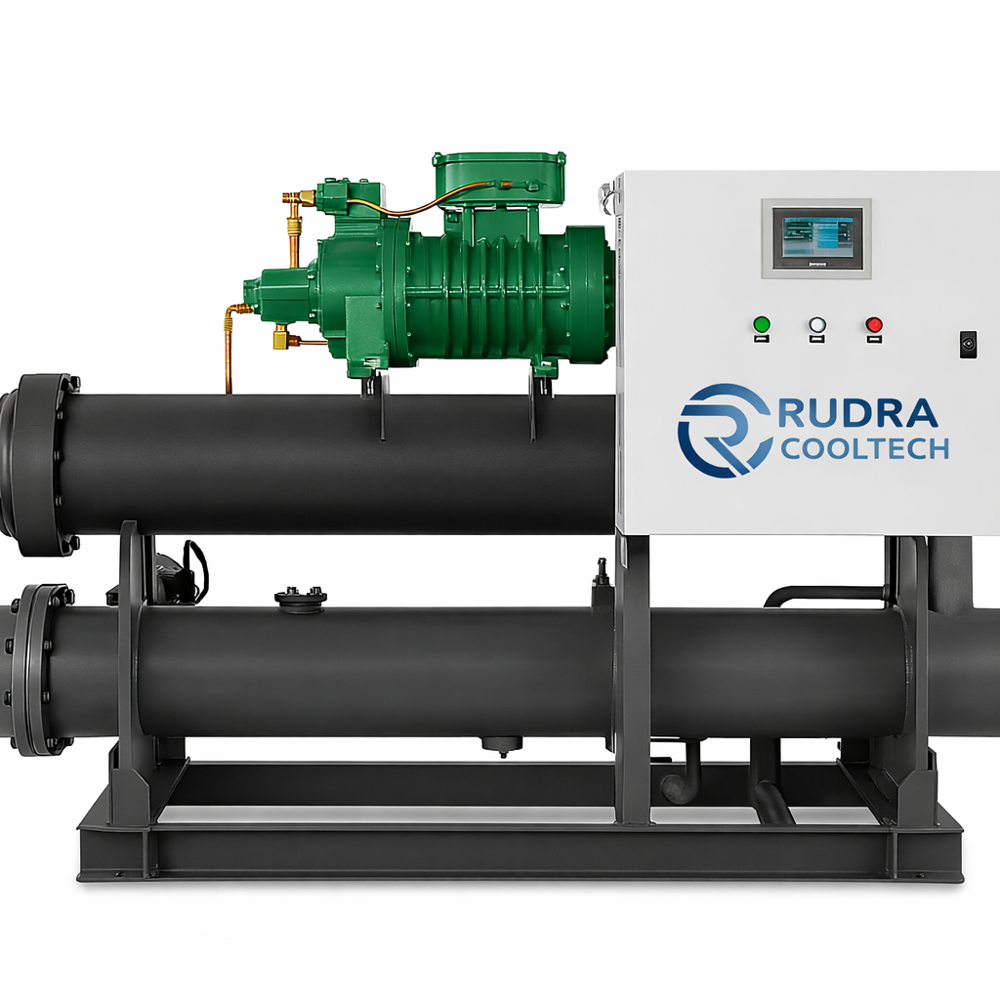

60 TR Water Cooled Screw Chiller Manufacturer in India | Industrial Central Cooling System

Product Description:

Our 60 TR Water Cooled Screw Chiller is a high-capacity, energy-efficient industrial cooling system designed for continuous and heavy-duty applications. Built with advanced screw compressor technology, this chiller ensures precise temperature control, high reliability, and superior efficiency for large-scale process and HVAC cooling requirements.

This system utilizes a water-cooled condenser connected to a cooling tower, offering better heat rejection and lower operating costs compared to air-cooled chillers. The unit is equipped with a high-efficiency screw compressor, robust shell & tube heat exchangers, and an intelligent PLC-based control panel for stable and automated operation under varying load conditions.

Designed for demanding industries such as pharmaceuticals, plastics, chemicals, food processing, HVAC systems, and large manufacturing plants, our 60 TR screw chiller delivers consistent performance, low energy consumption, and long operational life. Engineered for Indian ambient conditions, it is ideal for 24/7 industrial use.

Key Features:

• High-efficiency semi-hermetic screw compressor
• Water-cooled condenser for superior performance
• Energy-saving operation with reduced power consumption
• PLC / Microprocessor based intelligent control
• Heavy-duty shell & tube evaporator & condenser
• Low noise and vibration
• Continuous 24/7 operation capability
• Compact skid-mounted design
• Easy maintenance and long service life

Technical Specifications 60 TR Water Cooled Screw Chiller

Cooling Capacity

• 60 TR ( 210 kW)

Type

• Water Cooled Screw Chiller

Compressor

• Type: Semi-Hermetic Screw Compressor
• Make: Bitzer / Hanbell / Refcomp (or equivalent)

Refrigerant

• R134a / R407C

Evaporator

• Type: Shell & Tube (Chilled Water Side)

Condenser

• Type: Shell & Tube (Water Cooled)

Chilled Water Temperature

• Inlet: 12C
• Outlet: 7C (Standard)
• Adjustable Range: 5C to 15C

Chilled Water Flow Rate

• Approx. 180 210 LPM

Cooling Water Requirement (Condenser Side)

• Flow Rate: 180 220 LPM
• Inlet Temp: 30C
• Outlet Temp: 35C

Power Supply

• 415V / 3 Phase / 50 Hz

Total Connected Load

• Approx. 45 55 kW

Capacity Control

• Slide Valve / Step Control (25% / 50% / 75% / 100%)

Control Panel

• PLC / Microprocessor Based
• Touch Screen HMI (Optional)

Safety Controls

• High/Low Pressure Cutout
• Oil Pressure & Oil Level Protection
• Overload Protection
• Phase Failure / Reverse Protection
• Freeze Protection

Body Structure

• Heavy Duty MS Frame with Powder Coating

Noise Level

• < 75 dB (Approx.)

Installation Requirements:

• Cooling Tower (Mandatory)
• Chilled Water Pump
• Cooling Water Pump
• Proper Piping & Electrical Setup

Applications:

• Central HVAC Systems
• Pharmaceutical & Chemical Industry
• Plastic & Injection Molding Plants
• Food & Beverage Industry
• Dairy & Cold Storage
• Large Commercial & Industrial Facilities

Why Choose Our Screw Chiller:

• High efficiency Lower electricity cost
• Designed for heavy-duty industrial use
• Reliable performance in Indian conditions
• Long lifespan with minimal downtime
• Custom-built solutions available
